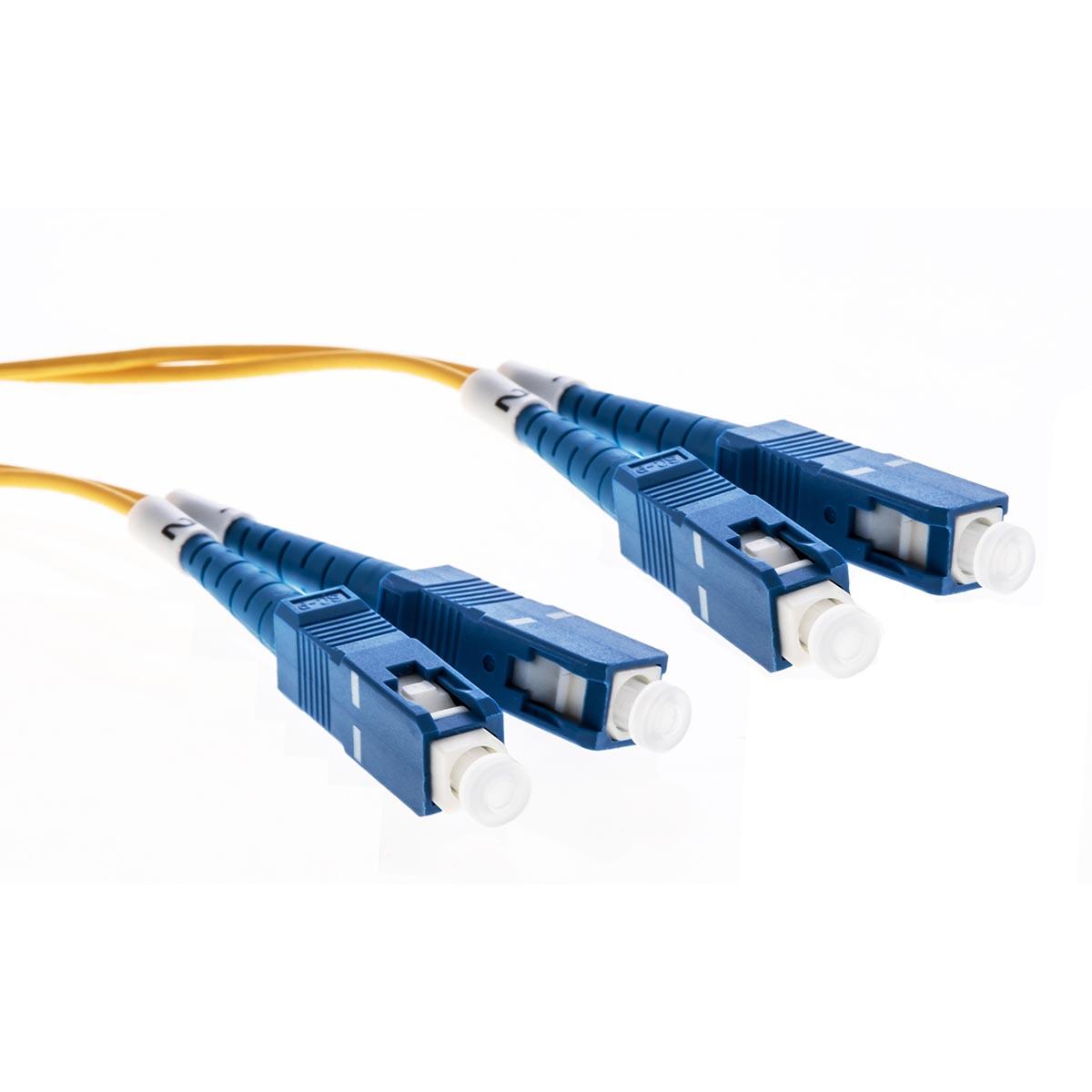

SSF™ OS2 SC/UPC-SC/UPC Patch Cable 1.6mm Riser 2M
SSF™ OS2 SC/UPC-SC/UPC Patch Cable 1.6mm Riser 2M
SKU:CLDOS2SCSC02M-UPC
Regular price
$33.99
Regular price
Sale price
$33.99
Unit price
per
Shipping calculated at checkout.
In stock
-
Features:
- Singlemode patch cords available in OS2 A2
- Multimode patch cods available in OM2, OM3, OM4 versions
- Duplex assemblies available with clips (SC and LC)
- SC and LC connector varieties / terminations
- Conforms to IEC, EIA-MTIA and Telecordia performance requirements
- Available in Duplex Configurations with clips
- Standard LC and SC connector types
- Bend Insensitive OM2, OM3, OM4, and OS2 type fibers
- TIA color coded connectors
- 600um tight buffer
- Riser Rated (OFNR) jacket type
- RoHS compliant
-
Specifications:
- Mode Field Diameter at Wavelength 1310nm: 8.6 ± 0.4 (µm)
- Mode Field Diameter at Wavelength 1550nm: 9.7 ± 0.5 (µm)
- Core / Hybrid Cladding Concentricity Error ≤ 0.5 (µm)
- Hybrid Cladding Diameter 125 ± 0.7 (µm)
- Hybrid Cladding Non-Circularity Error ≤ 1.0 (%)
- Soft Peel Jacket Identifier Diameter 250 ± 0.7 (µm)
- Coating Strip Force≤100 (g)
- Fiber Curl≥2 (m)
- Proof Test 100 (kpsi)
- Bend Induced Attenuation
- 1550nm 1 turn 10mm radius: ≤ 0.3 (dB)
- 10 turns around a mandrel of 15 mm radius: ≤ 0.03 (dB)
- 1625nm 1 turn 10mm radius: ≤ 1.0 (dB)
