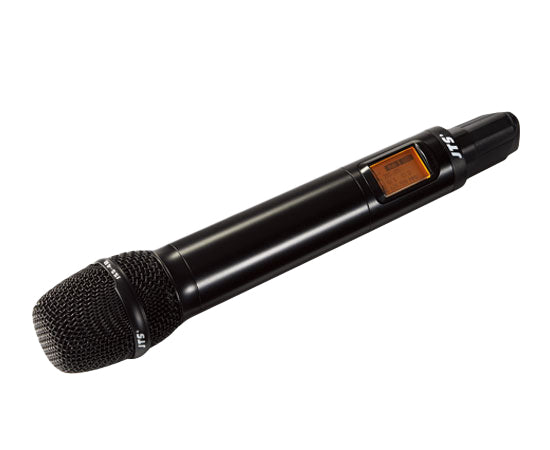

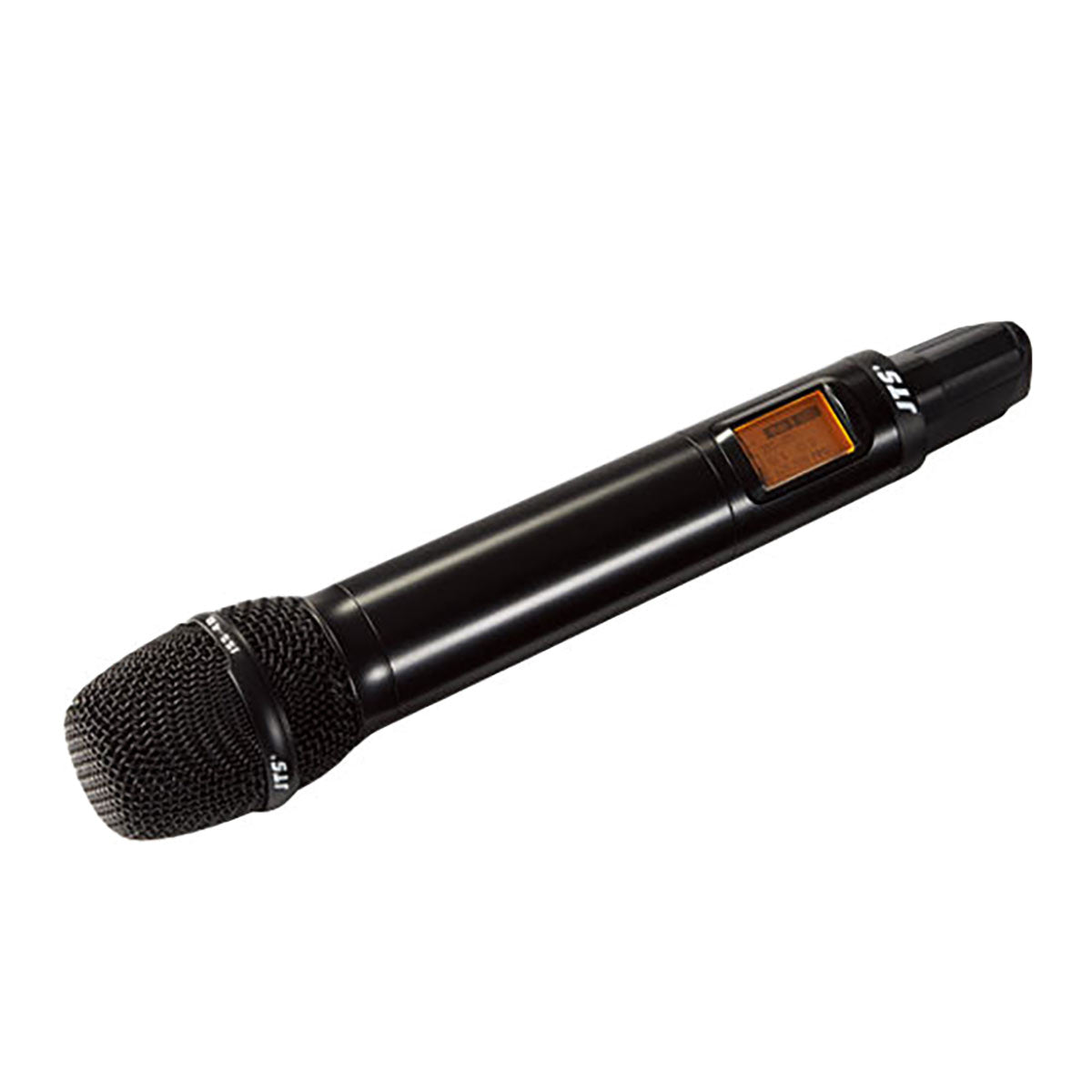

JSS-4B - Handheld Transmitter
JSS-4B - Handheld Transmitter
JTS
SKU:JT JSS-4B
In stock
Couldn't load pickup availability
The JSS-4B Handheld Transmitter offers a wide range of selectable frequencies from 2400 to 3000. With preset 15 groups, each containing up to 63 compatible channels, it utilizes Phase-Locked Loop (PLL) synthesized tuning for precise and stable frequency transmission. Its extended dynamic range and smooth frequency response ensure optimal performance, and the transmission power can be easily adjusted between Low and High. Additionally, the panel Lock-On function prevents tampering and RF interruption. Combined with various JTS capsules, including the TC-22 true condenser (option), superior sound quality is guaranteed. The transmitter also features a convenient slot-in charging design, compatible with two AA NiMH rechargeable batteries.
JSS-4B
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | UHF 470~960 MHz |
| Bandwidth | 108MHz Wideband |
| RF Outputs | Low / High |
| Stability | < ±10KHz |
| Frequency Deviation | ± 48KHz (Peak) |
| Chassis | Aluminium alloy |
| LCD Display | Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust |
| Controls | Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust |
| Output Connector | 4P Mini XLR |
| Spurious Emissions | <-50 dBC |
| Audio Frequency Response | 50Hz ~ 18k Hz |
| Battery | UM3, AA x2 |
| Dimensions | 50mm (W) x253mm (H) x35.5mm (D) |
| Weight | 93g |
| Notes | Actual product specifications may vary depending on model and region. |
