R-4 - Wireless Receiver (470-960Mhz)
R-4 - Wireless Receiver (470-960Mhz)
SKU:JT R4-470
Regular price
$1,155.00
Regular price
Sale price
$1,155.00
Unit price
per
Shipping calculated at checkout.
Low stock

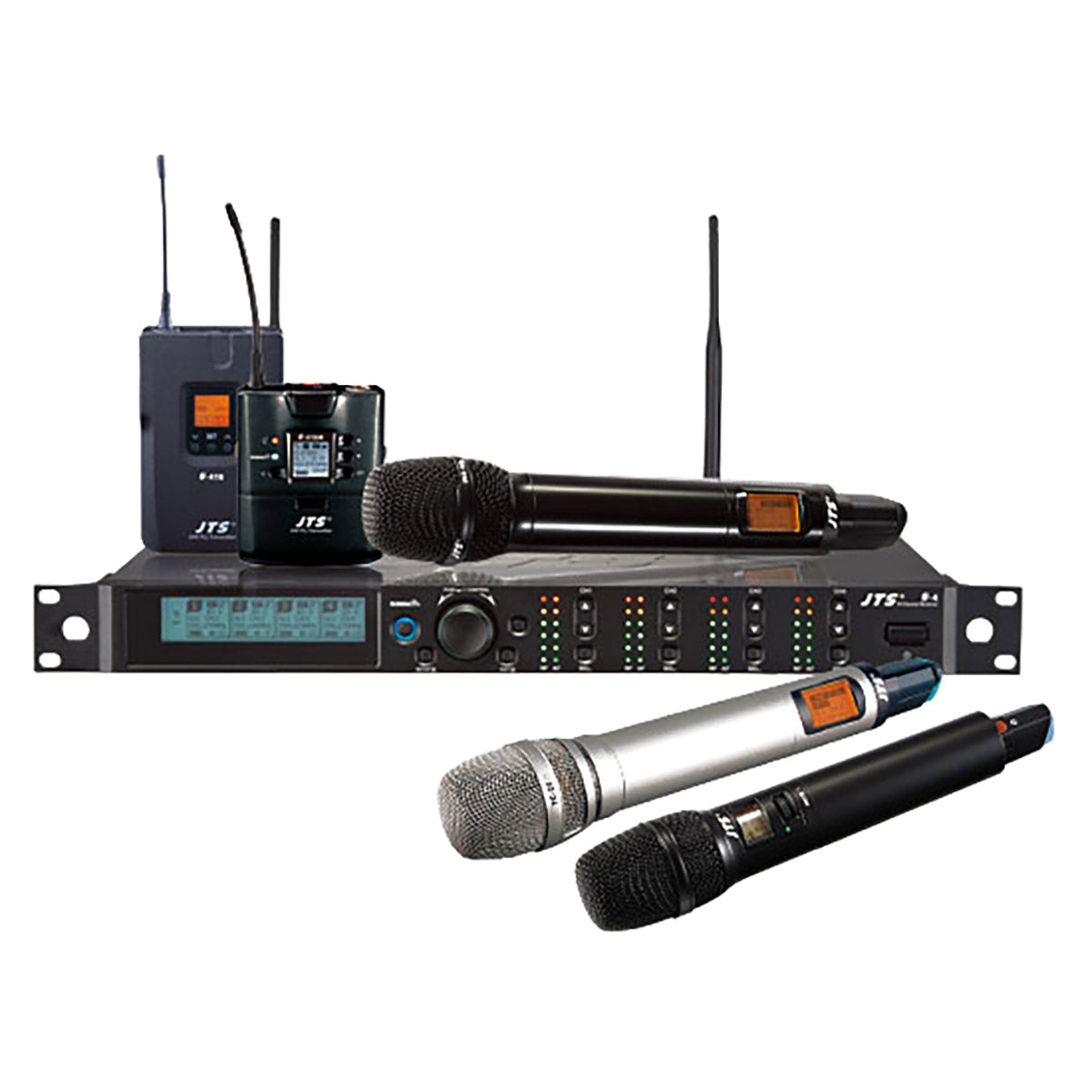

The R-4 Wireless Receiver utilizes JTS' latest wireless technology, providing more channels within limited bandwidth. Its 4 channels come in a convenient 19" one U case with cascading antenna outputs and AC power supply. The patented REMOSET feature simplifies microphone data transfer, allowing for detailed audio and radio performance adjustments for all 4 microphones simultaneously.
R-4
|
Frequency Preparation |
PLL Synthesized Control |
| Carrier Frequency Range | UHF 470~960 MHz |
| S / N Ratio | > 105dB |
| T.H.D | <0.6% @ 1KHz |
| Display Contents | Group, Channel, Frequency, Antenna A/B, Mute Display, AF Meter (LED BAR), RF Meter (LED BAR) , Battery Status |
| Controls | Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad |
| Audio Output Level | -12dB |
| AF Output Impedance | 600Ω |
| Squelch | Pilot Tone & Noise Mute |
| Operation Voltage | 100 ~ 240V |
| Output Connector | 4 independent XLR outputs, and 1 Ø6.3mm and 1 XLR for mixed output |
| Dimension (m / m) | 212.3mm(W)*38.3mm(H)* 144mm(D) |
| Notes | Actual product specifications may vary depending on region. |
