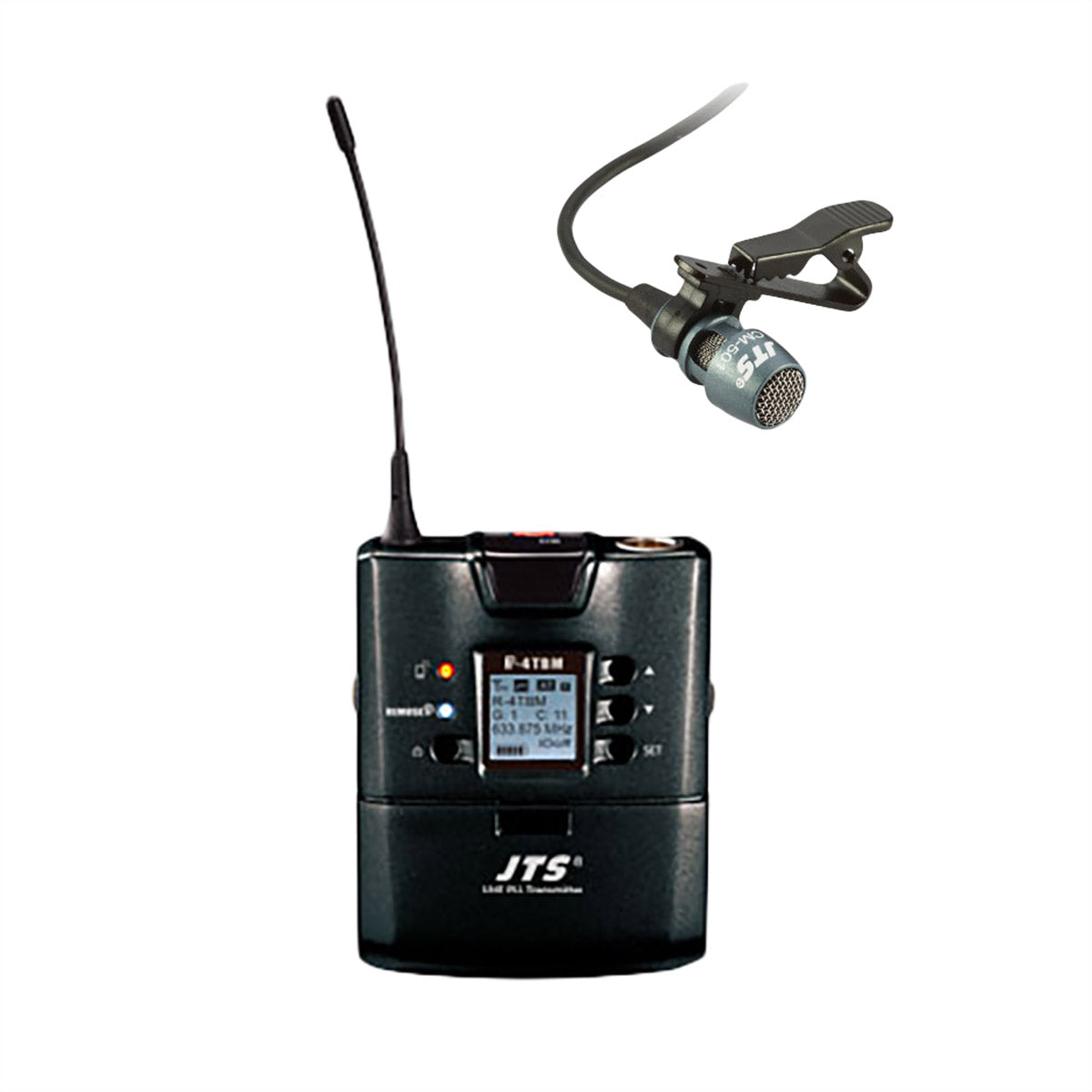

R-4TBM + CM501 - Metal Belt Pack & Microphone Bundle (506-542 MHz)
R-4TBM + CM501 - Metal Belt Pack & Microphone Bundle (506-542 MHz)
SKU:JT R4TBM-506
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Shipping calculated at checkout.
Call for Availability
R-4TBM
Expand your audio range with the R-4 METAL BELTPACK. With 2400-3000 selectable frequencies and preset groups, enjoy an extended dynamic range, smooth frequency response, and adjustable transmission power. Plus, the panel Lock-On function ensures uninterrupted RF and makes this bodypack compatible with a variety of microphones for versatile use.
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | UHF 470~960 MHz |
| Bandwidth | 108MHz Wideband |
| RF Outputs | Low / High |
| Stability | < ±10KHz |
| Frequency Deviation | ± 48KHz (Peak) |
| Chassis | Aluminium alloy |
| LCD Display | Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust |
| Controls | Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust |
| Output Connector | 4P Mini XLR |
| Spurious Emissions | <-50 dBC |
| Audio Frequency Response | 50Hz ~ 18k Hz |
| Battery | UM3, AA x2 |
| Dimensions | 62mm (W) x80.3mm (H) x22.6mm (D) |
| Weight | 93g |
| Notes | Actual product specifications may vary depending on model and region. |
CM-501
The R-4 METAL BELTPACK offers uni-directional voice pick-up for clear and high-quality sound. Its wide dynamic range and frequency response ensures optimal sound reinforcement. With its small size and clip attachment, it's perfect for minimal visibility and effortless wear on a tie, lapel, or dress.
| Connector | 4P Mini XLR |
| Frequency Response | 100~15,000 Hz |
| Polar Pattern | Cardioid |
| Sensitivity (at 1KHz) | -60±3 dB* (1mV)*0dB=1V/μbar |
| Impedance | 2.2kΩ |
| Max. SPL for 1% THD | 130dB |
| Dimension(mm) | Ø10.1mm(W)* 26.4mm(H) |
| Net Weight | 21.5g |
