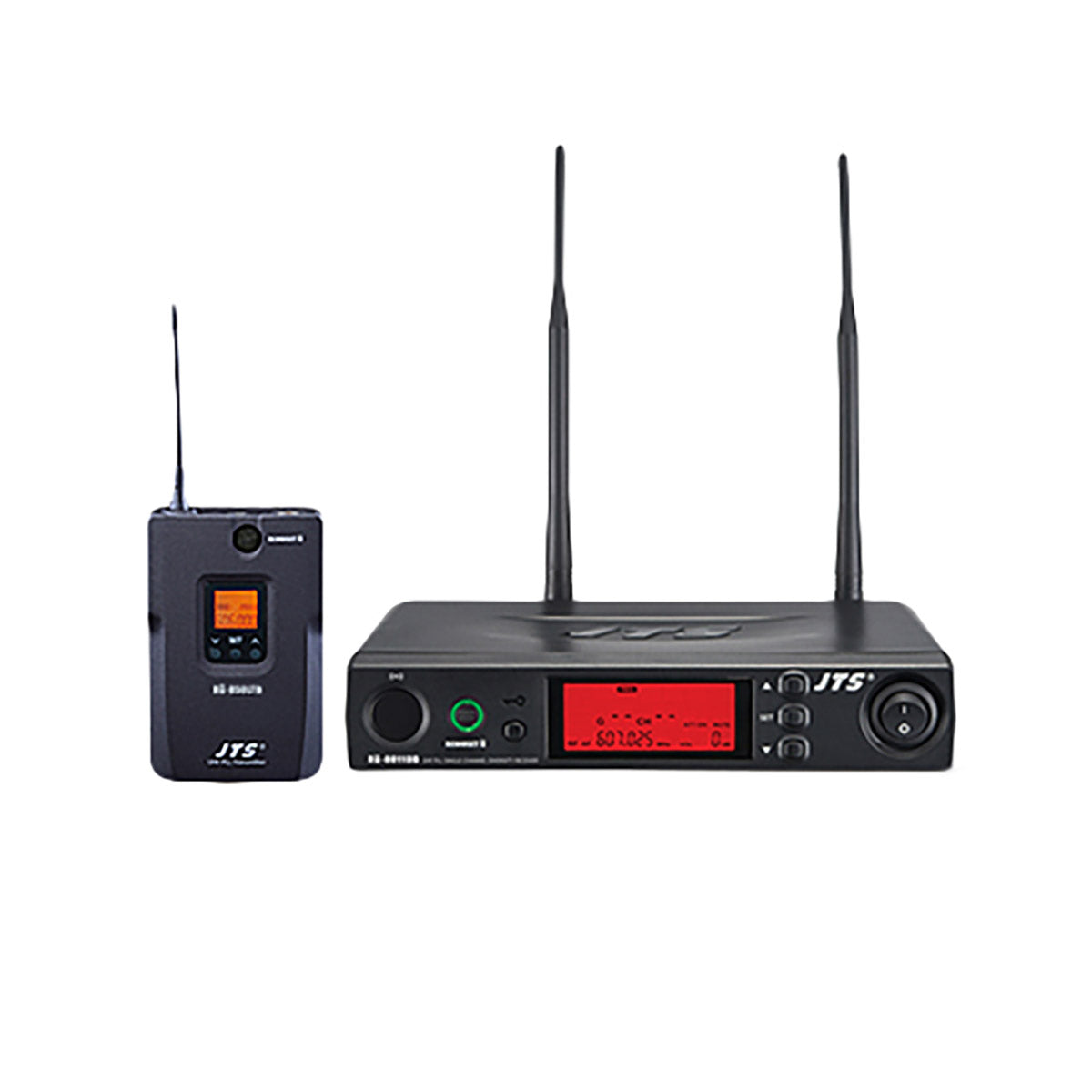

RU-8011DB Single Channel UHF Wireless Body Pack (NO MICROPHONE)

RU-8011DB Single Channel UHF Wireless Body Pack (NO MICROPHONE)

JTS

JT RU-8011DB BP

$455.00
Sale Call For Availability $455.00
Shipping calculated at checkout.

Call For Availability

RU8011DB

UHF PLL Body-Pack Transmitter

*JTS “Antenna diversity” Two antennas are used, spaced a few inches apart, each receiving the same signal from the transmitter. The receiver constantly measures the signal strength coming from both antennas and switches to whichever antenna is picking up the stronger signal.

  • 6 groups, each with up to 22 compatible preset channels

  • 1,441 selectable individual frequencies

  • REMOSET ULTRASONIC technology for receiver/transmitter synchronization

  • Auto-Scan function

  • Pilot tone squelch and noise mute

  • Backlit LCD display with status indications, e.g., group/channel, antenna A/B, RF receiving level, AF audio level

  • XLR output (balanced.) and 6.3 mm jack output (unbalanced.)

  • Removable BNC Antennas

  • Half Rack size with optional rack kits available.

  • Optional rechargeable Station is available (G3CH-2)

RU-850LTB
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 470~960MHz
3x Frequency range 856.100 - 864.900 MHz (F band)
606.500 - 629.900 MHz (U band)
721.500 - 748.375 MHz (G band)
658.125 - 678.500 MHz (D band)
487.125 - 506.500 MHz (I band)
502.000 - 694.000 MHz (T band)
Frequency Setting REMOSET U(Receive)
RF Outpus Low / High
Stability <±10KHz@Fc
Frequency Deviation ±48KHz
Spurious Emissions <-50dBc
Function Mute, Auto Power Off, Sensitivity Adjust, Low Battery
Display LCD + LED
Input Connector 4P Mini XR
Controls Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock
Battery UM3, AA x2
