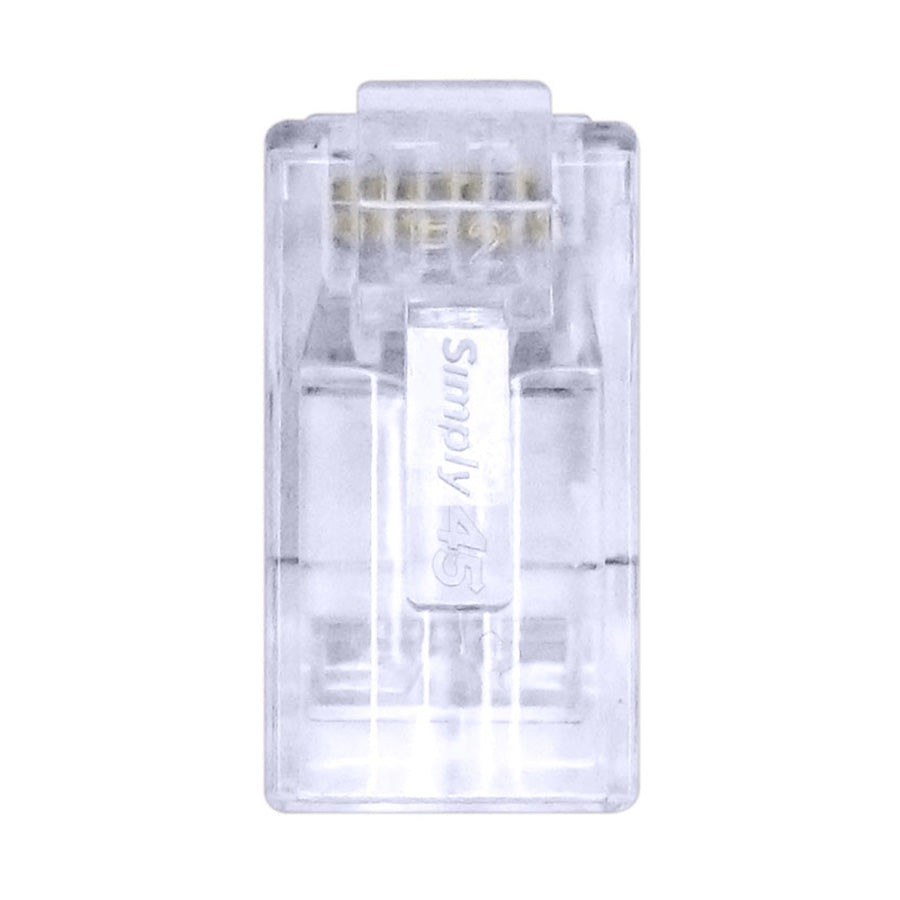

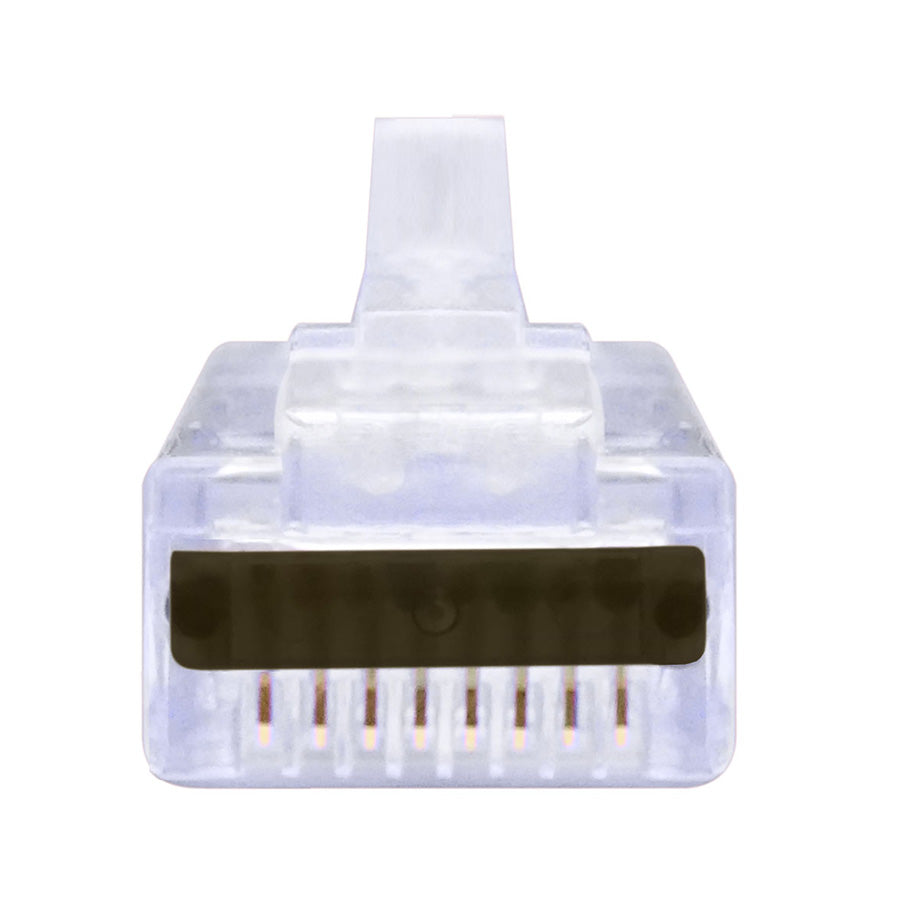

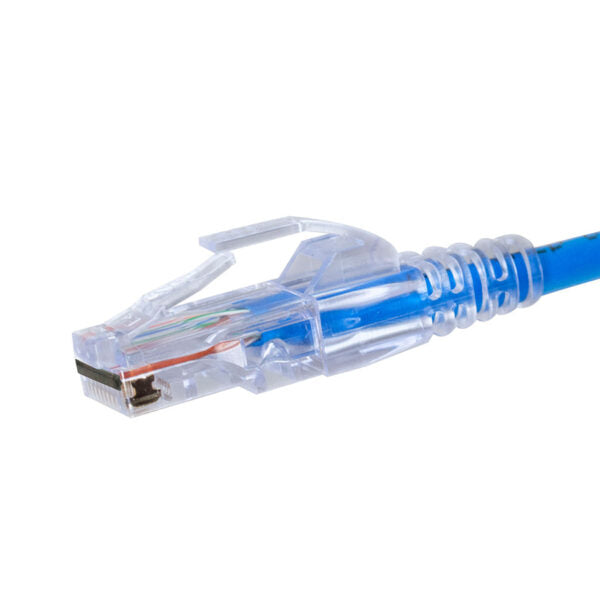

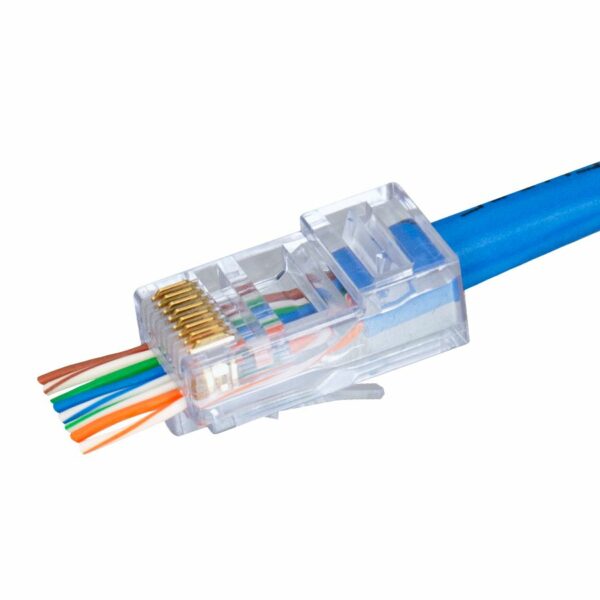

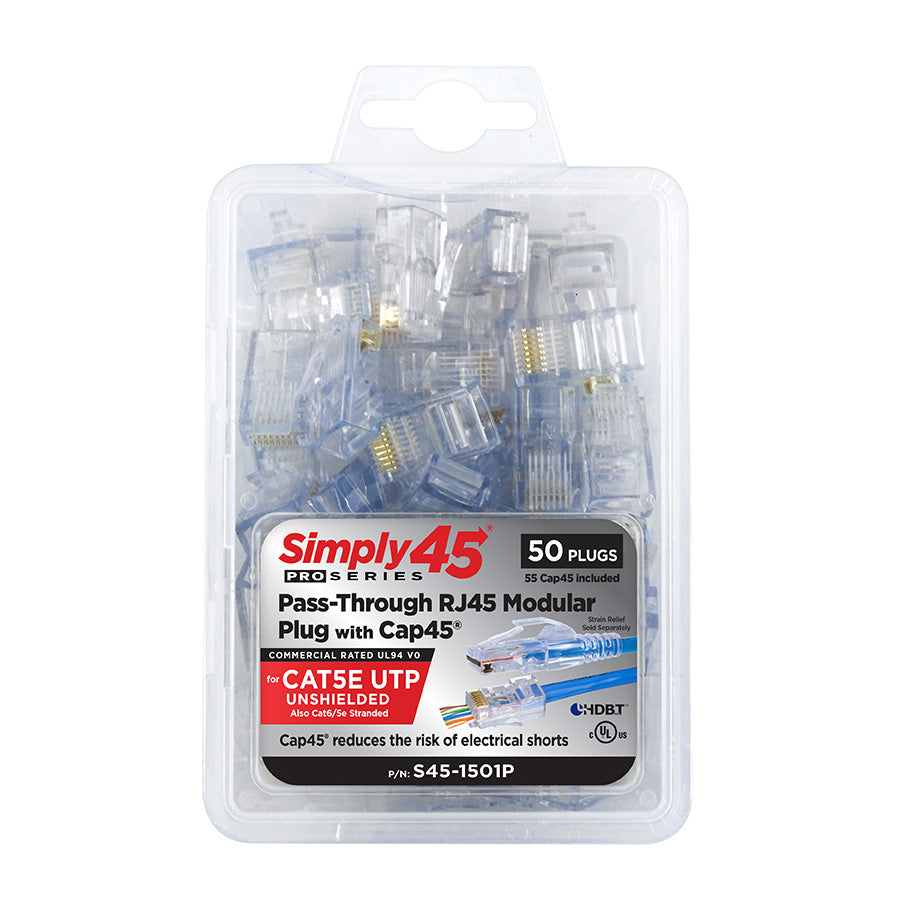

S45-1501P – Simply45® ProSeries Cat5e Unshielded Pass-Through RJ45 Modular Plugs with Cap45® 50 pc Clamshell
S45-1501P – Simply45® ProSeries Cat5e Unshielded Pass-Through RJ45 Modular Plugs with Cap45® 50 pc Clamshell
SKU:S45-1501P
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Shipping calculated at checkout.
Low stock
Part Number: S45-1501P
| Category Type | Cat5e |
| Connector Style | Pass Through with Cap45 |
| Wire Alignment | Straight Insert |
| Cable Type | UTP |
| AWG | 24AWG Solid , 28-26AWG Stranded. |
| Conductor Range | 0.95 – 1.05mm (0.037″ – 0.041″) |
| Max Cable OD | 6.5mm (0.255″) |
| Plug Material | Polycarbonate |
| Material Rating | UL94 V0 Commercial (Plenum, LSZH) Rated |
| Plug Color | Blue Tint |
| Patent Number | 10,811,831 B1 |
| Contact Design | 3 Prong Style |
| Contact Material | Phosphor Bronze |
| Base Contact Plating | 100µ of nickel plating |
| Surface Contact Plating | 50µ 24ct Gold |
| UL & cUL Listed | E520614 |
| Compliant | TAA, P65 |
| HDBaseT | Approved |
| Packaging Type | Resealable Clam Pack |
| Connector Quantity | 50 pieces |
| Cap45 Quantity | 55 pieces |
