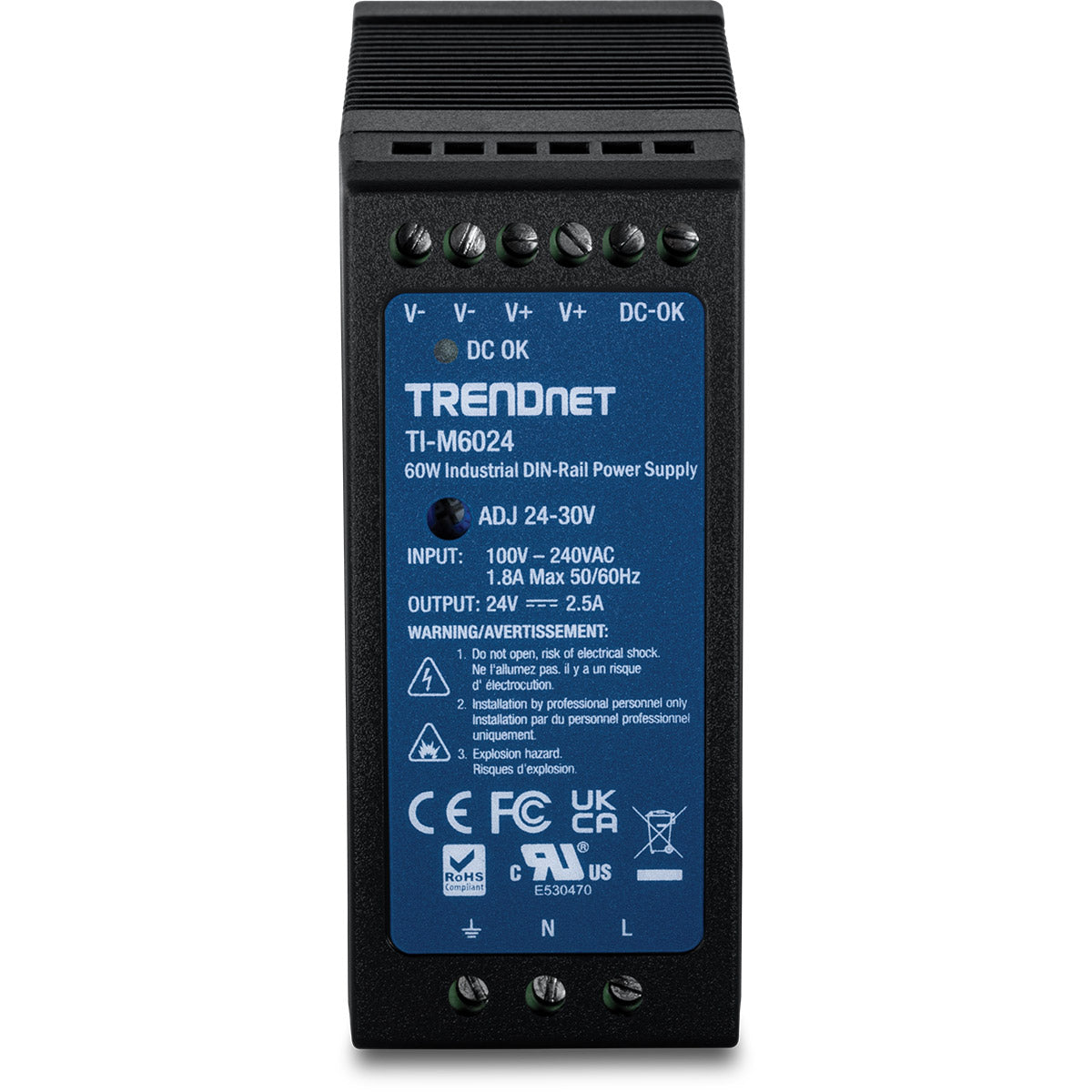

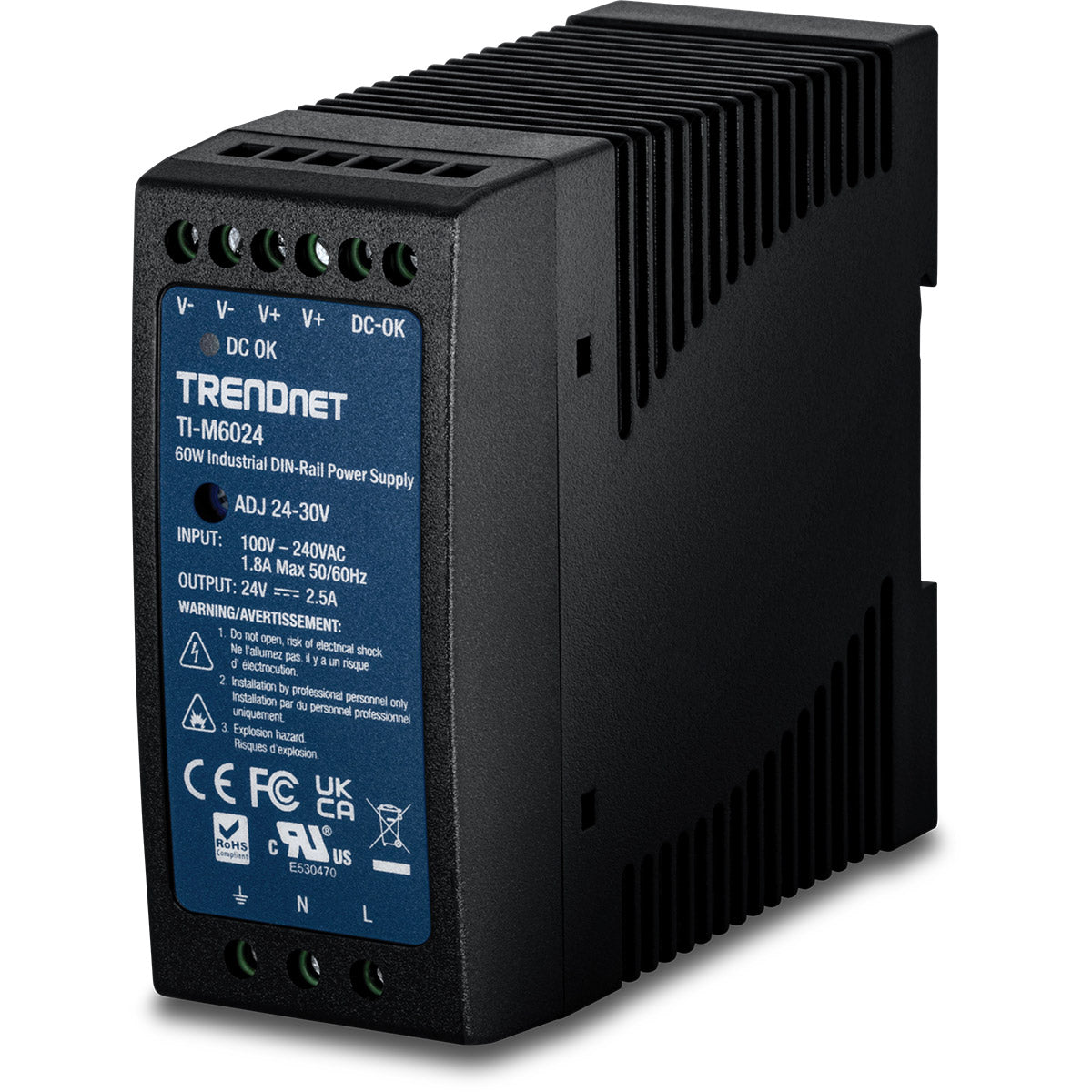

TI-M6024 - 60W Industrial DIN-Rail Power Supply (Version V2)

TI-M6024 - 60W Industrial DIN-Rail Power Supply (Version V2)

$55.57
$55.57
Shipping calculated at checkout.

Call for Availability

TRENDnet’s AC to DC Industrial DIN-Rail Power Supply, model TI-M6024, supplies up to 60W (24V DC, 2.5A) of power to industrial equipment, such as switches, injectors, and WiFi access points. This DIN-Rail power supply comes with an integrated DIN-Rail mount, and short circuit, over power, and overload current protection.

  • IP30 rated industrial power supply with integrated DIN-Rail mount
  • Provides up to 60W of power (24V DC, 2.5A)
  • Supported output voltage 24 – 30V DC
  • High efficiency 86% and low power dissipation
  • 150% peak load capability
  • Cooling by natural air convection
  • Short circuit/overload/over voltage protection
  • UL 62368 approved
  • 100% full load burn-in test
  • Built-in DC OK relay contact
  • Extreme -20 to 70 °C (-4 to 158 °F) operating temperature range
Interface
  • Input: 100 – 240V AC, 47 – 63Hz, 1.8A 120 – 370V DC
  • Output: 60W, 24 – 30V, 0 – 2.5A
  • DIN-Rail: TS-35/7.5 or 15
Housing
  • DIN-Rail mount
  • Power LED indicator
Special Features
  • DC OK relay contact
  • 150% peak load capacity
  • Protection functions
    • Short circuit
    • Over power
    • Over voltage
    • Over current
  • Protection type: self-recovery
Operating Temperature
  • -25° – 70° C (-13° – 158° F)
Operating Humidity
  • Max. 95% non-condensing
MTBF
  • 200,000 hours @ 25° C
Dimensions
  • 105 x 91 x 40mm (4.1 x 3.5 x 1.6 in.)
Weight
  • 267g (0.58 lb.)
Certifications
  • CE
  • FCC
  • LVD
  • UL 62368
  • CB IEC 62368
Warranty
  • 1 year
View full details
